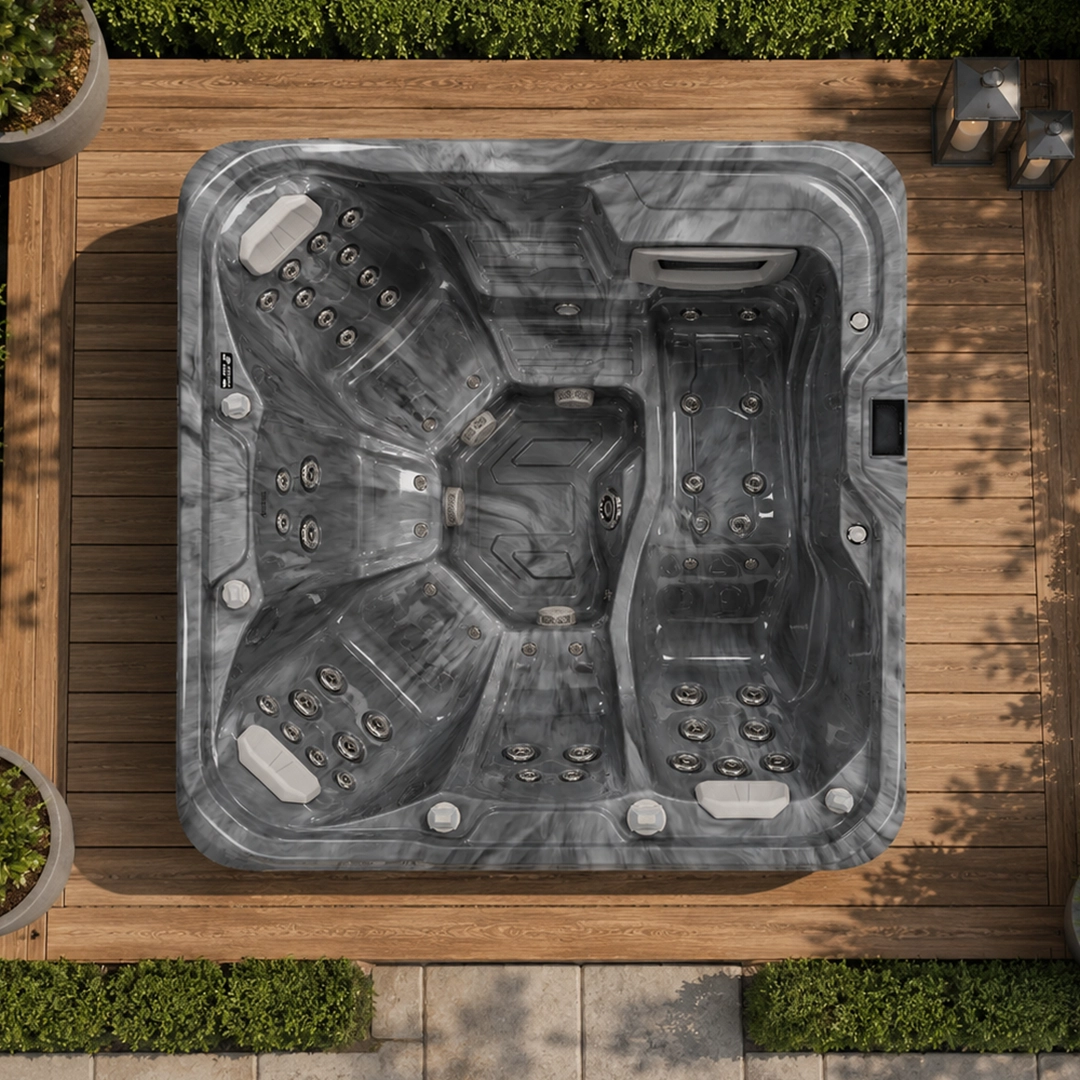

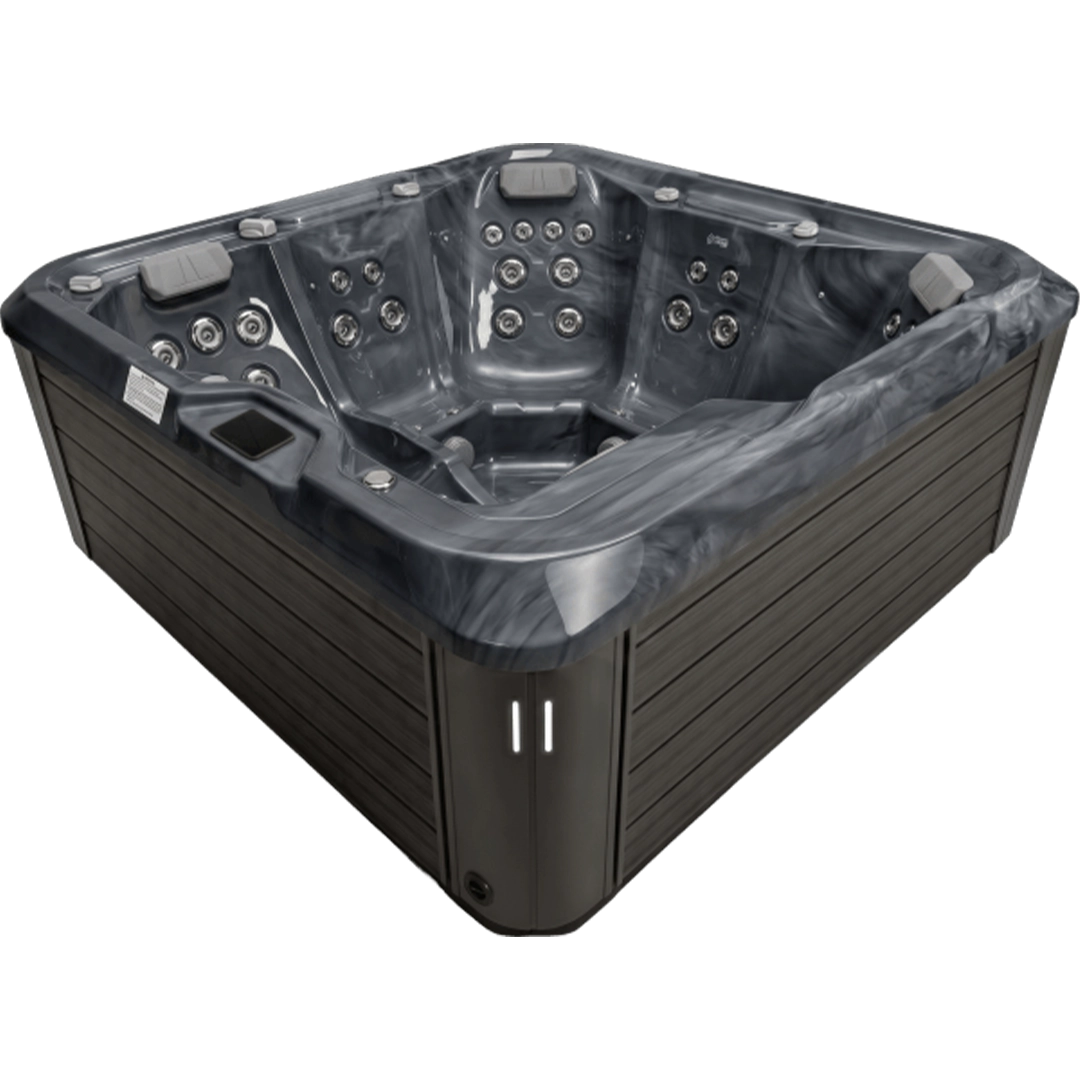

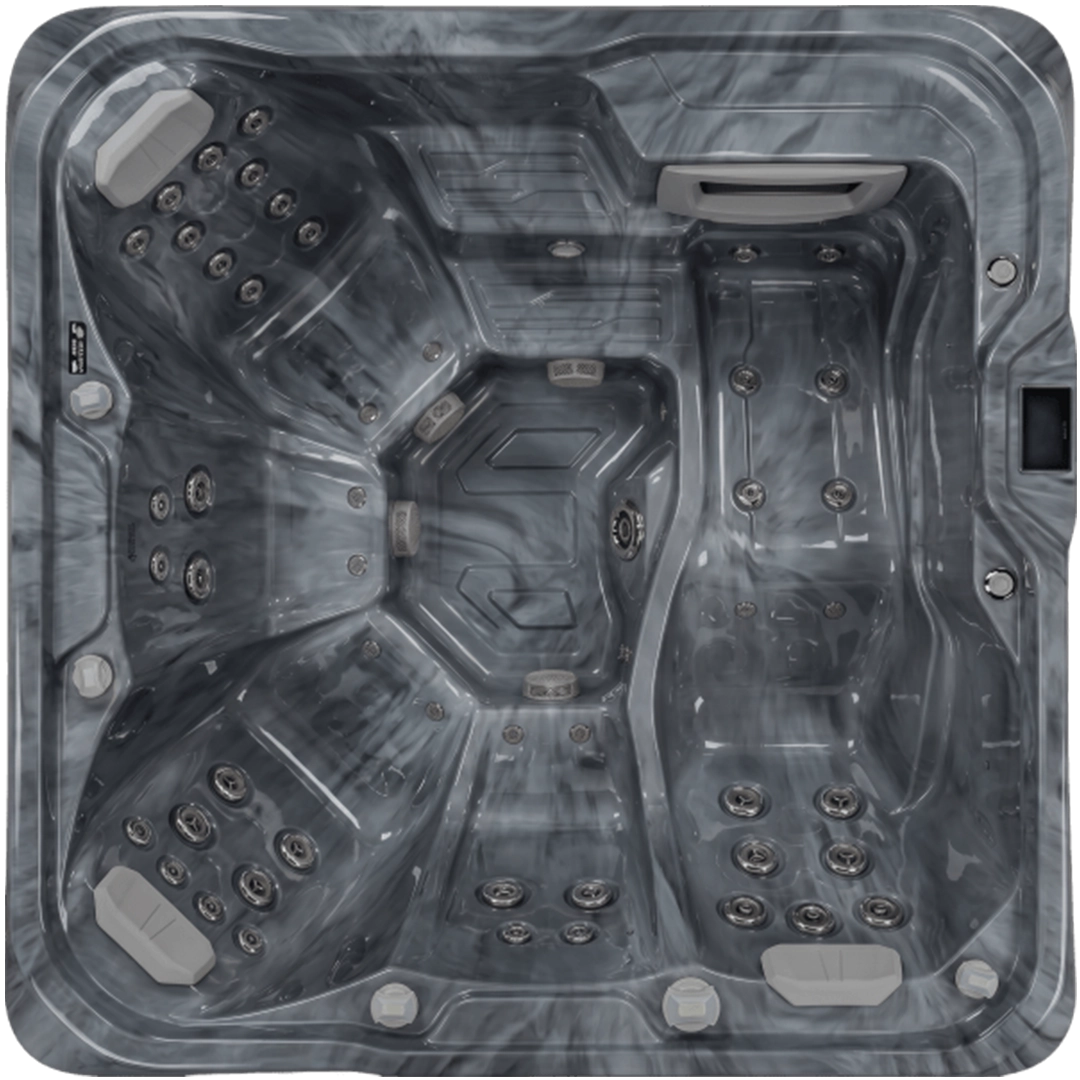

Equinox Nexus 360 5 Seater Hot Tub – Storm Cloud Grey

Description

Luxury Hydrotherapy Designed for Space-Conscious Gardens

Finding a high-output, twin-pump hot tub that fits comfortably on a standard patio without taking over your entire garden can be a challenge.

The Equinox Nexus 360 bridges that gap. Measuring a compact 2000 × 2000 × 820 mm, it provides a spacious layout for five adults—featuring 4 ergonomic seats and 1 full-length lounger—while easily sliding into garden spaces that larger 2.3-metre hot tubs simply cannot fit.

49-Jet Dual-Pump Hydrotherapy Architecture

Many compact hot tubs save space by stripping out performance and relying on a single small pump. The Nexus 360 maintains full flagship performance with a high-capacity 32 Amp electrical architecture:

• Twin Massage Pumps (39 Water Jets): Two dedicated LX-LP300 pumps deliver deep, uninterrupted water pressure across 39 rotary and directional E-Style jets without pressure dropping when all seats are occupied.

• Pre-Heated 400W Air Blower (10 Air Jets): Standard air blowers inject cold outside air into hot water, rapidly dropping the temperature. The Nexus 360’s pre-heated 400W blower warms air before injecting it through 10 floor jets for continuous, soothing warmth.

• 3kW SPATECH CA300 Heater: Maintains your targeted water temperature even while running all massage systems during freezing weather.

R10+ Insulation System: Designed for Daily Energy Savings

To prevent thermal loss and keep daily running costs as low as possible, the Nexus 360 is built with a multi-stage thermal barrier:

1. 50mm XPS Cabinet Insulation: Rigid, high-density thermal boards line the entire cabinet frame.

2. Full-Foam Shell Protection: Heavy insulation covers the upper quarter of the acrylic shell to prevent heat escape around the waterline.

3. Reflective Silver Skirt & Insulated ABS Base: Shields the underside from ground frost and reflects radiant heat back inside the cabinet.

4. Weather Shield Cover & Winter Bag: Includes a high-density insulated cover plus a heavy-duty outer winter bag for complete protection against wind, snow, and rain.

5. Heat Pump Ready: Features built-in bypass connections for quick integration with external air-source heat pumps if you choose to lower energy bills even further.

Smart SPATECH Touchscreen & Under-Shell Transducer Audio

• SPATECH TP10 Touchscreen: A full-colour waterproof display provides effortless control over jet speed, filtration cycles, and heating. Backed by a 5-Year Manufacturer Warranty on both the control pack and touch panel.

• WiFi Smartphone Control: Set temperature schedules and activate eco-modes remotely using the U-Spa mobile app so the spa is hot and ready when you arrive home.

• HydroSound™ Bluetooth Audio: Utilises hidden transducer speakers mounted directly behind the acrylic shell along with a built-in subwoofer. Transducers vibrate sound directly through the shell walls, creating rich sound while eliminating external grilles that can rust or degrade over time.

• Multi-Zone RGB LED Lighting: Features a large underwater RGB LED, perimeter waterline LEDs, and exterior corner cabinet lights for an inviting night-time atmosphere.

Important Site & Installation Requirements

Please review these key site preparations prior to delivery day:

• Electrical Requirements: This is a high-power 32 Amp hot tub. It requires a hardwired, dedicated 230V electrical supply fitted with an outdoor rotary isolator switch installed by a certified electrician before delivery.

• Base & Structural Weight:

  Dry Weight – 307kg

  Water Capacity – 995L

  The tub must be placed on a flat, level concrete pad or reinforced base engineered to support at least 1.7 Tonnes.

• Delivery Access Clearance: Requires a minimum clear access path of 1000mm in width and 2200mm in height from your driveway to the final installation area (checking for narrow side gates, drainpipes, or roof eaves).

Included Delivery & Installation Package (Worth £2,076)

Technical Specification Sheet

Documentation & User Guides

• Download the Official U-Spa WiFi App Quick Start Guide (PDF)

*Site survey is only available locally, contact us for more information.
**Included delivery does not include a crane or hiab if needed for delivery.
